Introduction to Node-RED

Node-RED is an innovative, open-source programming tool that simplifies the interconnections between the internet of things (IoT) devices, online services, and APIs. Developed initially by IBM’s Emerging Technology Services team and now part of the JS Foundation, Node-RED has emerged as a crucial player in the IoT ecosystem. Its primary appeal lies in its unique approach to programming; instead of lines of code, users create flows visually by connecting nodes in a web browser interface. This democratizes IoT development, making it accessible not only to seasoned developers but also to enthusiasts and professionals without a traditional programming background.

The essence of Node-RED is its focus on flow-based programming. Each flow consists of nodes representing a specific function or service. These could range from simple operations, like timers and notifications, to complex interactions with devices, APIs, and online services. The drag-and-drop interface ensures that creating, deploying, and managing IoT applications is straightforward and intuitive.

What sets Node-RED apart is not just its user-friendly interface but also its versatility. It runs on various platforms, from Raspberry Pi to full-scale cloud environments, making it an ideal choice for projects of any size. Moreover, its lightweight nature ensures that it can operate efficiently even on the constrained resources of edge devices, which is a significant advantage in the IoT landscape where performance and resource utilization are critical considerations.

Core Features of Node-RED

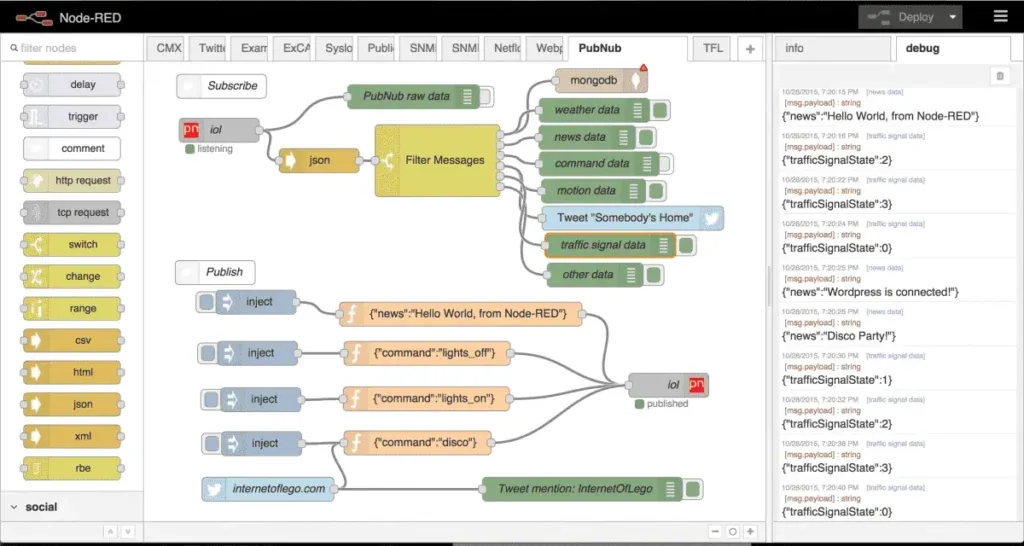

node red sample usage

Visual Programming Interface: The cornerstone of Node-RED’s philosophy is its visual programming interface. This interface allows users to create logical flows by simply dragging nodes onto a canvas and connecting them to form a process. This approach significantly reduces the complexity and time involved in developing IoT applications. It’s particularly beneficial for rapid prototyping, enabling developers and hobbyists to experiment and iterate quickly.

Rich Node Library: Node-RED boasts an extensive library of pre-built nodes, each designed for specific functions or integrations. These nodes cover a wide range of functionalities, from simple logical operations to complex interactions with external APIs, databases, and custom hardware. The node library is continuously expanding, thanks to contributions from the active Node-RED community and partnerships with technology providers. This ensures that Node-RED remains adaptable to the ever-evolving IoT landscape.

Lightweight and Scalable: One of Node-RED’s strengths is its scalability. Whether it's running on a low-power IoT device like a Raspberry Pi or a robust server infrastructure, Node-RED maintains a consistent performance level. Its modular architecture allows users to tailor their setups to specific project requirements, adding or removing nodes as needed without bogging down the system.

Real-time Data Processing: IoT applications often require the ability to process data in real time, whether it’s for monitoring sensor outputs or controlling devices based on complex logic. Node-RED excels in this area, offering tools and nodes specifically designed for handling data streams. This enables the creation of dynamic IoT applications that can respond instantaneously to changes in data or environment conditions.

Community and Support: The vibrant Node-RED community is a vital aspect of its success. From forums and social media groups to official documentation and tutorials, the community provides a wealth of resources for users at all skill levels. Whether someone is looking for help with a specific node, advice on best practices, or inspiration for a new project, the Node-RED community is an invaluable support network.

Node-RED’s approachable interface, combined with its powerful features, makes it a standout tool in the IoT development space. Its adaptability to different hardware and software environments, coupled with a strong community, ensures that Node-RED will continue to be a key enabler of IoT projects ranging from simple home automation setups to complex industrial IoT applications.

Key Advantages of Using Node-RED

Node-RED offers several compelling advantages that make it particularly well-suited for IoT applications. Its design and capabilities address many of the common challenges in IoT development, providing a user-friendly, efficient, and versatile tool.

Simplification of IoT Development: Node-RED’s visual programming interface lowers the barrier to IoT development, making it accessible to a broader audience. By abstracting the code into visually connected nodes, it reduces the complexity involved in writing software, allowing users to focus on the logic and flow of their applications. This democratization of IoT development opens up the field to non-programmers and accelerates the prototyping and development process.

Rapid Prototyping and Deployment: The ease of dragging, dropping, and connecting nodes allows for quick assembly of applications, facilitating rapid prototyping. Changes can be implemented and tested in real-time, significantly speeding up the development cycle. This agility is crucial in a field where technology and requirements evolve rapidly.

Wide Range of Hardware and Cloud Services Support: Node-RED’s extensive node library includes support for a vast array of hardware devices and cloud services. This interoperability is crucial in IoT, where applications often involve integrating diverse devices and services. Node-RED simplifies these integrations, enabling developers to focus on creating value-added features rather than dealing with compatibility issues.

Built-in Tools for Security: As IoT applications often involve managing sensitive data, security is a paramount concern. Node-RED provides built-in tools and nodes specifically designed for securing applications. Features such as HTTPS support, user authentication, and permission management help ensure that IoT applications built with Node-RED can be secured against unauthorized access and data breaches.

Typical Use Cases for Node-RED

Node-RED’s flexibility and ease of use make it suitable for a wide range of IoT applications. Below are some typical use cases where Node-RED excels:

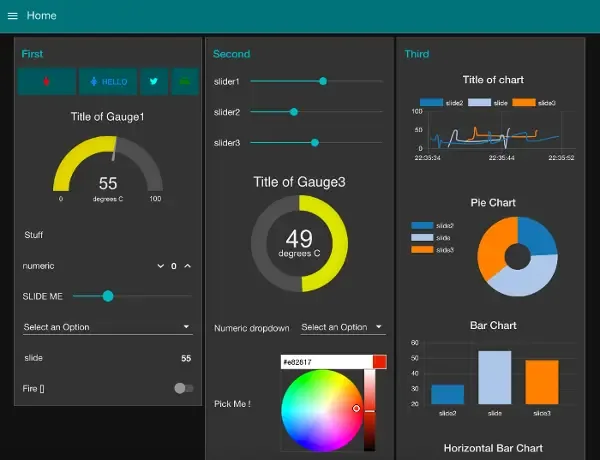

node red dashboard

Home Automation: Node-RED is widely used in home automation projects. It can integrate various smart devices, such as lights, thermostats, and security cameras, into a single, cohesive system. Users can create custom dashboards to monitor and control these devices based on time, events, or sensor data, enhancing convenience and energy efficiency.

Industrial Automation: In the industrial sector, Node-RED facilitates monitoring and control of manufacturing processes. It can process data from sensors on the production line, enabling real-time decision-making to optimize production efficiency and detect anomalies. Node-RED can also interface with industrial protocols and systems, bridging the gap between legacy equipment and modern IoT applications.

Data Collection and Analysis: Node-RED is adept at collecting data from various sources, including sensors, APIs, and online services. It can process and analyze this data, extracting valuable insights. For example, in agriculture, Node-RED can analyze environmental data to optimize watering schedules, improving crop yields while conserving water.

Remote Monitoring and Control: Node-RED enables remote monitoring and control of devices, which is invaluable in many fields such as environmental monitoring, infrastructure management, and healthcare. For instance, water quality sensors in remote lakes can send data to a Node-RED application, which processes and displays the information in an accessible format for researchers.

Educational Purposes: Node-RED’s visual interface and the wide range of supported technologies make it an excellent tool for education. It provides a hands-on way for students to learn about programming, IoT, and data analysis, bridging theoretical concepts with practical application.

Security and Monitoring: Building security systems that detect unauthorized entry, monitor surveillance cameras, and alert property owners is another area where Node-RED shines. It can integrate motion detectors, door sensors, and cameras into a comprehensive security solution.

Healthcare Monitoring: In healthcare, Node-RED can be used to monitor patient vital signs remotely, using data from wearable devices. It can alert healthcare providers to anomalies, facilitating timely intervention.

Getting Started with Node-RED

Embarking on the Node-RED journey is an exciting endeavor for anyone interested in IoT, whether you're a seasoned developer or a hobbyist. The process of getting Node-RED up and running involves a few straightforward steps that unlock a world of possibilities for creating IoT applications.

Installation: Node-RED can be installed on various platforms including Windows, macOS, Linux, and Raspberry Pi, thanks to its Node.js-based architecture. For most users, the simplest way to install Node-RED is through npm, Node.js's package manager, using the command npm install -g node-red. Raspberry Pi users can leverage the script provided by Node-RED’s official website, which not only installs Node-RED but also configures it to start automatically on boot.

Navigating the Interface: Upon launching Node-RED for the first time, users are greeted with a clean, intuitive web interface. The central area, or flow editor, is where you'll drag and drop nodes to build your applications. The node palette on the left lists all the available nodes, categorized by functionality. On the right, the info tab provides documentation about the selected node, while the debug tab is invaluable for troubleshooting your flows.

First Project - A Temperature and Humidity Alert System

we'll create a flow that monitors temperature and humidity using a sensor and sends notifications when certain conditions are met.

  1. Hardware Setup:
  • Assume you have a DHT22 temperature and humidity sensor connected to your Raspberry Pi or another compatible device.
  • Install the necessary libraries and drivers to interact with the sensor.
  1. Node-RED Flow:
  • Open your Node-RED editor and create a new flow.
  • Add the following nodes:
    • Inject Node (Simulate Sensor Data):
    • Set it to inject data every 5 minutes (or your desired interval).
    • Payload: { "temperature": 25.5, "humidity": 60 } (adjust values as needed).
    • Function Node (Check Thresholds):
    • Use JavaScript code to check if the temperature exceeds a threshold (e.g., 28°C) or humidity falls below a threshold (e.g., 40%).
    • Example code:
    if (msg.payload.temperature > 28 || msg.payload.humidity < 40) { msg.alert = true; } return msg;
    • Switch Node (Filter Alerts):
    • Route messages with msg.alert set to true to the next nodes.
    • Email Node (Send Alert):
    • Configure your email settings (SMTP server, credentials, recipient address).
    • Use the message payload to compose an alert email.
    • Debug Node (For Debugging):
    • Connect it to the output of the function node to observe the flow behavior.
  1. Flow Explanation:
  • The inject node simulates sensor data (temperature and humidity) every 5 minutes.
  • The function node checks if the conditions (high temperature or low humidity) trigger an alert.
  • If an alert is detected, it sets msg.alert to true.
  • The switch node filters messages with alerts.
  • The email node sends an email alert.
  • The debug node helps you monitor the flow.
  1. Customize and Enhance:
  • Extend the flow by adding more sensors (e.g., light intensity, gas sensors).
  • Integrate with other services (e.g., SMS notifications, IoT platforms).
  • Store historical data in a database (e.g., InfluxDB).
  1. Deploy and Monitor:
  • Deploy your flow and observe the debug messages.
  • Test by adjusting the simulated sensor data or introducing real sensor readings.

Advanced Topics in Node-RED

As you grow more comfortable with Node-RED, you might want to explore more advanced topics to further enhance your IoT projects.

Custom Nodes: While Node-RED comes with a vast library of nodes, there might be situations where you need a function not covered by existing nodes. In such cases, you can create custom nodes. Developing custom nodes involves coding in JavaScript and creating a node's visual representation using HTML. The Node-RED documentation provides comprehensive guides on developing custom nodes, ensuring you can extend Node-RED to meet your project's specific needs.

Integration with Cloud Platforms: IoT applications often involve sending data to or receiving commands from the cloud. Node-RED offers nodes for integrating with popular cloud platforms like AWS IoT, Microsoft Azure IoT Hub, and Google Cloud IoT Core. These integrations allow you to leverage the powerful cloud-based services for analytics, machine learning, and data storage, opening up new possibilities for your IoT applications.

Security Best Practices: As IoT devices are increasingly targeted by cyberattacks, securing your Node-RED applications is paramount. Some best practices include:

  • Using HTTPS for web interfaces and encrypted connections for external communications.
  • Implementing user authentication and authorization for accessing the Node-RED editor.
  • Keeping Node-RED and its nodes up to date to ensure you have the latest security patches.


Node-RED is a powerful, flexible tool that has significantly lowered the barrier to IoT development. Its visual programming interface, coupled with the support for a wide range of hardware and software, makes it an ideal choice for projects ranging from simple home automation to complex industrial IoT applications. By engaging with the Node-RED community, staying up to date with the latest developments, and exploring advanced features, you can unlock the full potential of this remarkable tool. As IoT continues to evolve, Node-RED stands out as a beacon for innovators, offering a platform where ideas can swiftly transition from concept to reality.

Additional Resources

For those eager to dive deeper into Node-RED, a wealth of resources awaits:

  • Official Node-RED Documentation: Provides detailed guides, tutorials, and API references.
  • Node-RED Forum: A place to ask questions, share projects, and connect with other users.
  • Online Tutorials and Courses: Numerous online platforms offer tutorials ranging from beginner to advanced levels.
  • Node-RED Blog: Offers insights into new features, community highlights, and more.

Embarking on your Node-RED journey opens up a universe of possibilities for IoT development. Whether you're automating your home, optimizing industrial processes, or anything in between, Node-RED provides the tools and community support to bring your visions to life.
